Exercise

Neural networks

Let us see the differences between neural networks which apply ReLU and those which do not apply ReLU. We have already initialized the input called input_layer, and three sets of weights, called weight_1, weight_2 and weight_3.

We are going to convince ourselves that networks with multiple layers which do not contain non-linearity can be expressed as neural networks with one layer.

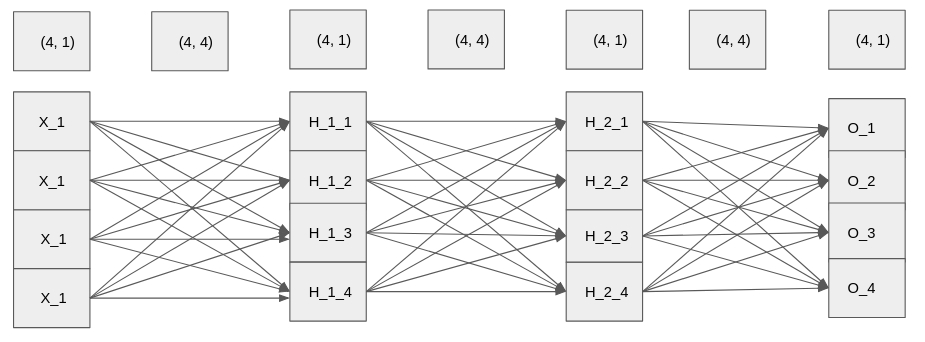

The network and the shape of layers and weights is shown below.

Instructions

100 XP
  • Calculate the first and second hidden layer by multiplying the appropriate inputs with the corresponding weights.
  • Calculate and print the results of the output.
  • Set weight_composed_1 to the product of weight_1 with weight_2, then set weight to the product of weight_composed_1 with weight_3.
  • Calculate and print the output.
